Dynamo system is a device that measures the power of rotating bodies such as motors and generators, and is classified into various types according to the brake method, and measures the efficiency and durability of motors and generators by measuring rotational speed and torque.
Active type large capacity dynamo system
- Product characteristics
- Active type for high-capacity, high-speed, high-torque measurement
- Dedicated S/W for measurement
- Product performance
- Measurement capacity: 3MW or more
- Input voltage: 3-phase 690V, 60Hz
- Output voltage: 3-phase 0~690V, 0~550Hz
- Application:
- Large-capacity motor measurement
- Small and medium engine measurements
Active type large capacity dynamo system
- Product characteristics
- Active type for high-capacity, high-speed, high-torque measurement
- Dedicated S/W for measurement
- Product performance
- Measurement capacity : 150kW or more
- Input voltage : 3-phase 380V, 60Hz
- Output voltage : 3-phase 0~500V, 0~200Hz
- Application:
- Large-capacity motor measurement
- Small and medium engine measurements
Large capacity tandem dynamo system
- Product characteristics
- Active type for high-capacity, high-speed, high-torque measurement
- Dedicated S/W for measurement
- Product performance
- Measurement capacity : 5~300kW
- Maximum Rotation speed 12,000RPM
- Application:
- Large-capacity motor measurement Passive type (powder and EC)
- Small and medium engine measurements
- High-speed rotation non-contact measurement
Active type large capacity dynamo system
- Product characteristics
- Active type for high-capacity, high-speed, high-torque measurement
- Dedicated S/W for measurement
- Product performance
- Measurement capacity : 5~300kW
- Maximum Rotation speed : 20,000RPM
- Application:
- Large-capacity motor measurement
- Small and medium engine measurements
- High-speed rotation non-contact measurement
Active Type Medium Capacity Dynamo System
- Product characteristics
- Active type for economic medium capacity measurement
- Dedicated S/W for measurement
- Product performance
- Measurement capacity : 1~500kW
- Maximum Rotation speed : 12,000RPM
- Application:
- Medium capacity motor measurement
- Small engine measurement
- Contact Torque Sensor Measurement
Active Type Medium Capacity Dynamo System
- Product characteristics
- Active type for economic medium capacity measurement
- Dedicated S/W for measurement
- Product performance
- Measurement capacity : 1~500kW
- Maximum Rotation speed : 12,000RPM
- Application:
- Medium capacity motor measurement
- Small engine measurements
- Contact Torque Sensor Measurement
Active Type Medium Capacity Dynamo System
- Product characteristics
- Active type for economic medium capacity measurement
- Dedicated S/W for measurement
- Product performance
- Measurement capacity : 100W or more
- Input voltage : 3-phase 380V, 60Hz
- Maximum Rotation speed : 12,000RPM
- Application:
- Large-capacity motor measurement
- Small and medium engine measurements
Clutch characteristic tester
- Product characteristics
- LSPM starting characteristic test
- Dedicated S/W for measurement
- Powder break method
- Product performance
- Measurement capacity : 5~300kW
- Maximum Rotation speed : 12,000RPM
- Application:
- LSPM high torque motor measurement

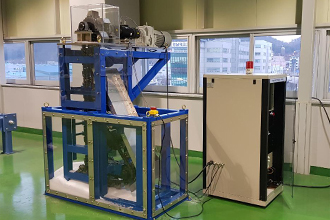

Bucket tester
- Product characteristics
- Telescopic tension display
- PI FEED-BACK control
- Double safety emergency stop
- Dedicated S/W for measurement
- Product performance
- Reduction ratio 60:1
- Drive motor : 2HP*4P*220V
